Automotive and parts painting line

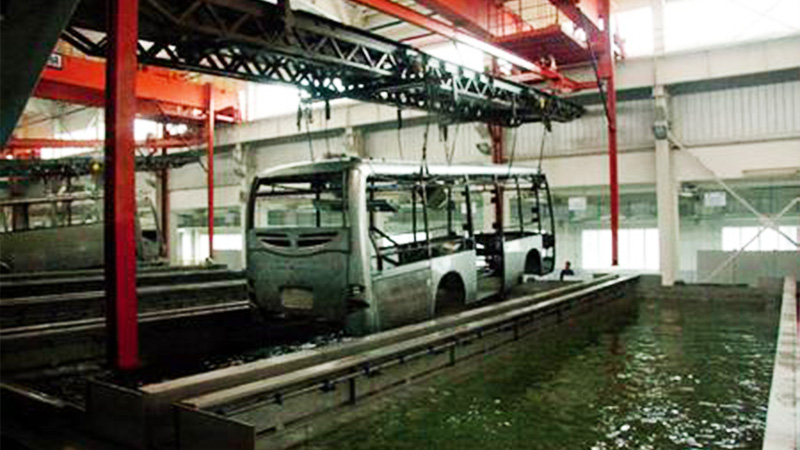

Automotive and parts coating line mainly by the pre-treatment section, dehydration and dust removal part, painting part, leveling drying department. The whole workpiece conveying system of the coating production line adopts aerial suspension or the combination of the ground skid mechanized conveying way, it is steady, quick and convenient to operate and can improve the industrial output. It adopts PLC control programming and the actual requirement of the production process. Bus center monitoring, automatic transfer of partition to run.
The main components of the coating line include: suspension conveyor chain, pretreatment equipment, dehydration furnace, painting equipment, curing furnace (heat source system), cooling system, electric control system.
Process flow:
Dusting production line: on the pieces - pre-treatment (preheating) - dehydrator - dust - painting - drying (15-20min, 180 ℃ -220 ℃) - cooling - the next pieces
Painting line engineering application features:
It can be used in the painting work of single or small batch workpieces. It can be used for hanging conveyer, electric trolley, ground conveyer and so on. It can be used for painting, painting, And other transportation machinery to form transport operations. Automatic electronic control operation, efficient completion of spraying operations.
Engineering process layout:
1. spray line: on the conveyor chain - spray - drying (10min, 180 ℃ -220 ℃) - cooling - the next pieces
2. the paint line: the conveyor chain - electrostatic dust - primer - leveling - paint - leveling - drying (30min, 80 ℃) - cooling - the next pieces
Paint spraying mainly oil-spray paint room, curtain-type spray paint room, widely used in bicycles, car leaf spring, large loader surface coating.
